DATA RADIO TRANSMISSION AS
A KEY PILLAR IN INTRALOGISTICS

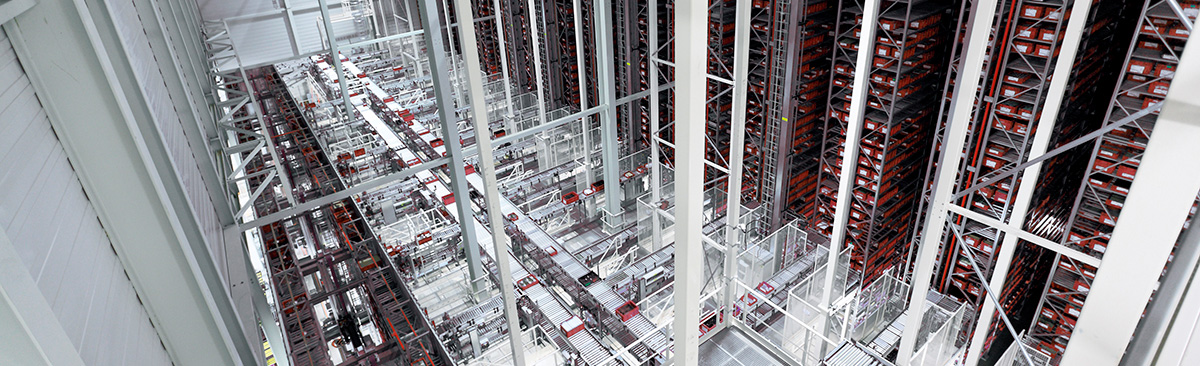

Intralogistics as an organization, control, execution and optimization of the in-company material and material flow

APPLICATION

In industry and trade, in-house material flow has gained such a high importance that in 2004 the VDMA (Verband Deutscher Maschinen- und Anlagenbau = Mechanical Engineering Industry Association) introduced the term “Intralogistics“ as a clear differentiation to logistics in the exterior such as e.g. rail and road. Intralogistics is characterized by a particularly high degree of automation of processes with usually wireless communication of transport equipment (“intelligent warehouse and storage“) associated with high demands on safety and availability in view of frequently confined and indistinct space conditions. For this reason, data radio transmission has become a key pillar of intralogistics; its ability to replace wires has decisively supported growth in intralogistics. Relevant applications are amongst others known under the terms automated guided vehicle or electric monorail conveyor.

CHALLENGE

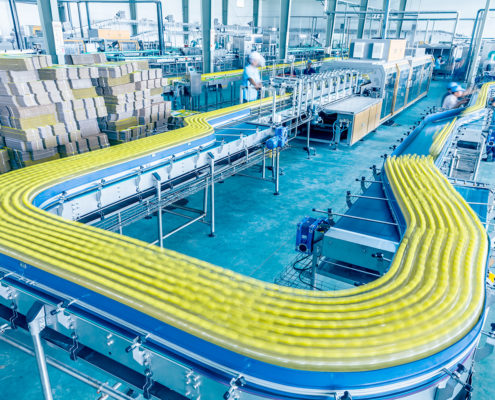

The provision of component parts or comprehensive assembly groups (for production sequences) or objects of any kind (for shipping or warehouse processes) must be guaranteed reliably even in case of indistinct, narrow and also varying space conditions. In this process, safety and availability are the most important criteria, making high demands on control and drive technology of all intralogistics components. This includes also radio data transmission applied for wireless operation which Schildknecht AG in Murr has addressed for 35 years with high intensity. The core competence is the highest reliability of the radio link to avoid downtimes. That is achieved with the patented-registered data pre-processing technology. A very particular characteristic of this company is its business model in which the development of innovative devices and project-specific application consultancy feature the same value.

WIRELESS DATA TRANSMISSION IN ELECTRIC MONORAILS

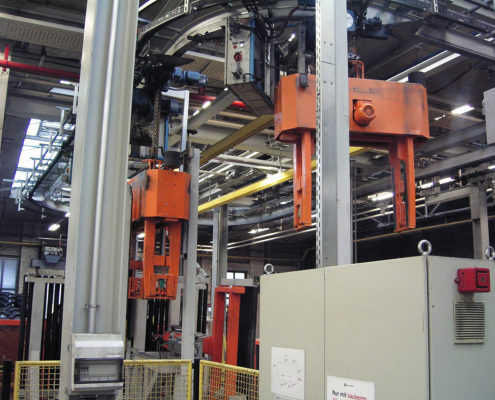

John Deere automates a lot of production processes, one is for example the tire mounting using an electric monorail conveyor.
>> DATAEAGLE Master
>> DATAEAGLE Slave

1
2
1

DATAEAGLE Master

2

DATAEAGLE Slave

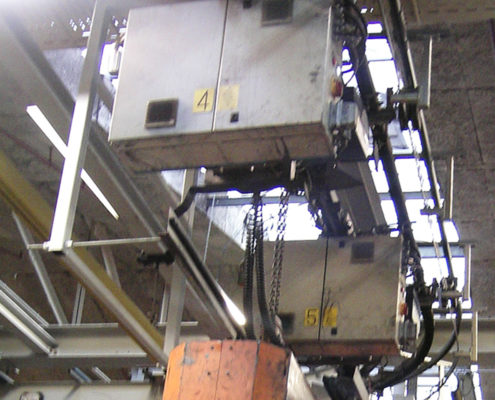

1 DATAEAGLE Master

In applications like electric monorail conveyors, automated guided vehicles (AGV) or storage system the Slaves are located decentrally in cabinets.

2 DATAEAGLE Slave

The Master is located in a central control cabinet. One Master can be connected with up to 8 Slaves. The range within Bluetooth is up to 300m.

Quick Contact

Contact us – we also give you a call back. Whether you have questions concerning Industrial Wireless using PROFIBUS or PROFINET, or M2M solutions our experts have many years of experience to support you finding the best solution.

Last Name*

First Name*

Company

Phone

Zip Code*

E-Mail*

Message

With sending you confirm that you have read and accepted the privacy policy* .
Fields marked with a start (*) are mandatory.

Call me back!

Download: Flyer and Technical Data

Intralogistics with DATAEAGLE

Our Products

DATAEAGLE 3000 – Wireless PROFIBUS (EN)
1.4MB

DATAEAGLE 4000 - Wireless PROFINET (EN)

DATAEAGLE 4000 - Wireless PROFINET (EN)
1.84 MB

DATAEAGLE 3000 PROFIBUS

The DATAEAGLE 3000-A series from Schildknecht AG for Wireless Profibus has been specially developed for the transparent transmission of Profibus DP using various radio technologies. The use of our patented filter technology guarantees a high-availability and reliable radio connection. All devices that have a Profibus DP interface can be connected by radio. Transmission speeds of up to 1.5 Mbit / s are supported.

DATAEAGLE 4000 PROFINET

The Dataeagle 4000 series for Wireless Profinet has been specially developed for the transparent transmission of PROFINET IO using various radio technologies. All devices that have a PROFINET IO interface can be connected by radio. The DATAEAGLE 4002 series also supports safety-related devices with PROFIsafe for PROFINET IO.

OPTIMIZED AXLE ASSEMBLY BY AUTOMATED GUIDED VEHICLES AND PROFIBUS RADIO LINKS

AGVs and the Data Transmission System DATAEAGLE 3000
Especially in engineering companies, requirements for shorter throughput times and low volumes of stock have made internal material flow indispensable. In this process, automated guided vehicles and electric monorail conveyors play an important part: here, workpieces within an assembly line are transported from one assembly station to the next one by vehicles of most different types of construction.
